Homelab - Install Pi-hole

Install Pi-hole

We will use Docker and Docker Compose to set up Pi-hole and other services.

1. In the home directory, create a docker directory and pihole inside docker.

   cd ~
   mkdir -p docker/pihole

   Copy

2. Create the docker-compose.yml file

   cd docker/pihole
   vim docker-compose.yml

   Copy

3. Enter the contents

   services:
     pihole:
       container_name: pihole
       image: pihole/pihole:latest
       ports:
         - 53:53/tcp
         - 53:53/udp
         - 8081:80/tcp
         - 8443:443/tcp
       environment:
         TZ: Asia/Kolkata
         FTLCONF_webserver_api_password: <Admin panel Password>
         FTLCONF_dns_listeningMode: all
       volumes:
         - /mnt/data/docker-data/pihole/etc-pihole:/etc/pihole
         - /mnt/data/docker-data/pihole/etc-dnsmasq.d:/etc/dnsmasq.d
       restart: unless-stopped
       cap_add:
         - SYS_NICE
         - NET_ADMIN

   Copy

   Port 53 is for the DNS resolver, 8081 and 8443 are for the admin dashboard. Set the admin panel dashboard accordingly.

4. Start the container

   docker compose up -d

   Copy

   This will pull the Pi-hole Docker image and start the container.

5. Once the service is up, we can verify by launching the admin panel from 192.168.0.153:8081/admin. If everything is okay, we can see the login page.

Set Pi-hole as the DNS resolver

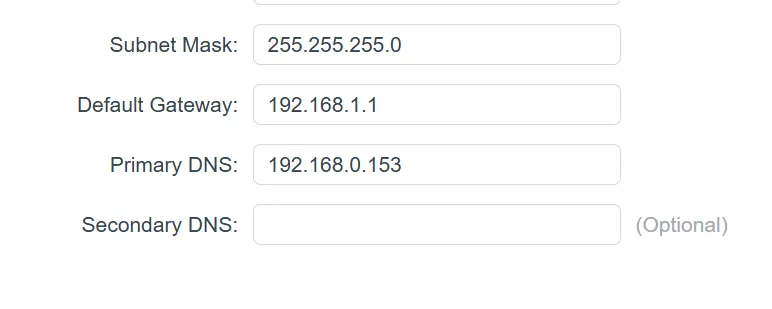

In the router admin page, we need to set the DNS endpoint to our Pi-hole server.

After applying, all the DNS queries will be handled by our Pi-hole server.
